The NEW hardwired version of our popular Dryer Buddy™ Plus AUTO is here!

The BSA Electronics Intellisplit™ - Intelligent Splitter Indoor version is a hardwired fully automatic 2-way switcher based on the original Dryer Buddy™ Plus AUTO. It allows you to share your dryer outlet with your EVSE without having to flip any switches. It may also be used to share any circuit with a second load, for example an Electric Water Heater circuit can be shared with a new 240v outlet for anything you need to power. Basic operation is simple, the Dryer circuit is always live and the EVSE circuit is only live when there is enough amperage available to charge your EV. When the Dryer is off it is drawing little to no amps so the EVSE circuit is switched on allowing your EV to charge. If the Dryer is turned on at any time then the EVSE circuit is switched off, when the Dryer is done, power is restored to the EVSE circuit and if your EV needs charging it will resume charging after a 5 min delay (adjustable). Designed so other members of the house don't have to understand anything technical to use the Dryer when they need to do a load of laundry.

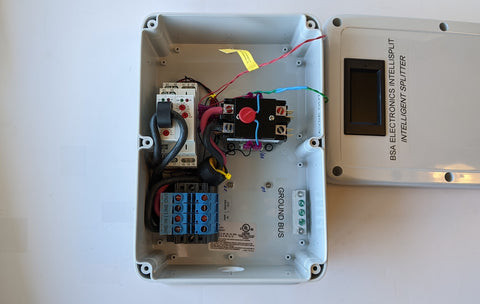

This unit is built in the same high quality polycarbonate case as the Dryer Buddy™  Plus AUTO and I use a beautiful indoor rated kWh meter to display important information. This keeps track of how much Energy you are using so you know how much $ in electricity you’ve used, by simple multiplying the value by your utilities rate (0.13/kWh here in Vegas) The meter is wired to read system Voltage and only meter the Current flowing through the EVSE outlet, unlike the original Dryer Buddy where the meter reads all Current flowing through the unit. In this configuration the Kilowatt Hours (kWh's) will only accumulate for Energy flowing through the EVSE outlet (on the right of the face) this value is stored between power outages and may be reset when you like. This allows you to see only the Energy your Electric vehicle has consumed.

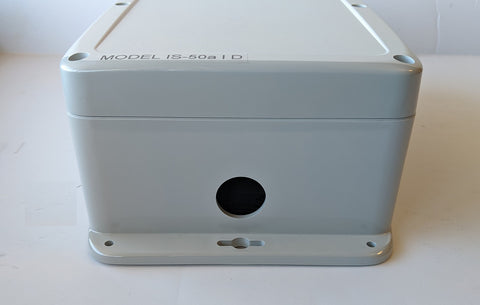

The BSA Electronics Intellisplit™ - Intelligent Splitter Indoor version has an entry hole on the bottom for 3/4" conduit. You may increase the hole size with a stepper bit and/or add additional holes for your installation needs. This unit is for indoor use and is not Outdoor rated, it must be located inside a building protected from the elements. For our Outdoor version see here;
BSA Electronics Intellisplit™

Selecting models; Typically you would select the BSA Electronics Intellisplit with the same rating as your existing circuit breaker 30 or 50 amps, but you can future proof by ordering a larger unit that has more bandwidth (in amps) so that you may upgrade the cable from your breaker panel in the future or take the unit with you to a new location with a 50 amp circuit. You may use the 30amp version on a 30amp or smaller circuit, e.g. 25, 20, 15. You may use the 50amp version on a 50amp or smaller circuit, e.g. 45, 40, 30. 25, 20,15.

This is a kit that requires home electrical installations skills or installation by a qualified Handyman/Electrician. Dimensions are: 10.00 x 7.00 x 4.06 in / 254.00 x 177.80 x 103.12 mm

Please note: What needs and doesn't need to be permitted as well as local code vary from city to city, you will want to look into this before purchasing and committing. BSA Electronics is not responsible for these additional cost and returns are not accepted if it is determined you cannot use this custom built product in your project.

Some high efficiency Dryers such as the Bosch Series 800 Max slowly ramp the speed of the motor and don't draw significant current while running, which will cause erratic switching, to alleviate this the Delay Controller is standard in the BSA Electronics Intellisplit. If you are using a BSA Electronics Intellisplit™ to share one circuit and charge two EV’s (no Dryer) then you will definitely need the built in Delay Controller.

The BSA Electronics Intellisplit™ - Intelligent Splitter Indoor version is similar in operation to the Outdoor version, but the Indoor version has a kWh meter and no redundant circuit breaker on the EVSE output. It is built in a Polycarbonate case.  Have a look at the Demo video;

 URL link: BSA Electronics Intellisplit™

Need some extra length between your outlet and your Electric Vehicle Charging Station (EVSE)? I custom build extension cords to the length your need and with the plug and outlet of your choice, see my extensions in the Adapter’s section for several models; Extension Cords

Email me with your custom request

Quick Sheet Manual: BSA Electronics Intellisplit™ - Intelligent Splitter
