Adapter #71 20amp 6-50 Plug to 5-15 & 5-20 socket TURBO adapter For all Tesla, 2016+ Volt and Bolt EVSE's and for Chrysler Pacifica Plug-in Hybrid
Sometimes you just need something custom! This adapter was created by request and added to the website. It has a 6-50 plug and a 5-15 / 5-20 outlet. With this adapter you can connect a 240v compatible device that's equipped with a 120v 5-15 or 5-20 plug to a 6-50 outlet. Be sure to check the information plate on your device or check online to insure it can handle 240 volts, some factory EVSE are 240v compatible and are not labeled such as the EVSE's that come with the Chrysler Pacifica Plugin Hybrid and the stock EVSE's included with the 2016-2018 GM Volt and GM Bolt
Example uses are:
Boost the output of the stock EVSE included with the new Chrysler Pacifica Plugin Hybrid Electric Vehicles (PHEV) to cut charge times in half.
Boost the output of the stock EVSE included with the 2016-2018 GM Volt and GM Bolt to cut charge times in half. Look for GM part #2427-7224 or #2428-0118 or #2428-8872 (these are just a few of the know numbers)
|
List of 2016 - 2022 Compatible Vehicles and Chargers (and older) -=Do not use if your vehicle is not listed=- |
||
|
Vehicle |
Vehicle Model |
*Look for these Charger Model #’s on the Label |
|
Chevrolet |
Bolt, Volt, Spark* |
2016 -2021* Voltec GM 23254904, 23254905, 24291478 24297486 GM #E346031 |
|
Chevrolet |
Bolt, Volt, Spark (older)* |
24277224, 24280118, 24288872, 24291478,22967199, 22940501, |
|
Chrysler |
Pacifica |
All 2016 - 2021 P05062107AC, V96555BD |
|
Fiat |
Fiat 500e |
All 2013 - 2020 |
|
Ford |
Fusion, Focus, Escape, C-Max* |
2014-2020* Check Model # FoMoCo: FM58-10B706AG (or AH, or AJ): HS78-10B706-AA |
|
Honda |
Clarity* |
Check Model* # 1T210-5WJ-A0 |
|
Hyundai |
Elantra, Ioniq, Kona Sonata, Santa Fe, Tucson* |
2015 - 2022* Check Model # 91887-G7520 & 91670-K4020 YURA or PSE-13-00084 Kyungshin. |
|
Kia |
Niro, Optima, Soul* |
2017 - 2022* Model # 91686-G5020, 91887 -G5520, & 91887-G5521 YURA |
|
Nissan |
LEAF |
2016 - 2019 Check Model # 29690 3NF2E, Panasonic |
|
Smart Car |
ED, ForTwo, ForFour* |
2013-2019* 117148 3015008, some older 2013 |
|
Toyota, Lexus |
Prius, Prius Prime, RAV4* |
2012-2022* Check Model # G9060-47190 or G9060-47130 |
|
Tesla |
All models (Gen 2) |
Works with Gen 2 Mobile Connector and NEMA 5-15 120V adapter |
|
Duosida |
120V 16A |
All level 1 & level 2 chargers with 120V PLUG - 2016 - 2020 |

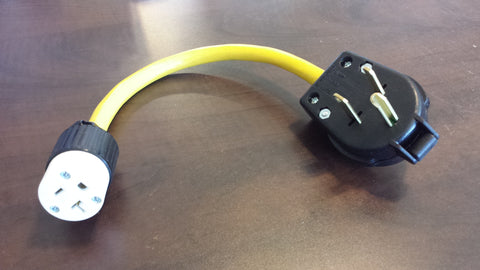

Constructed using my super flexible black rubber cord, the yellow cable in the pics are of the first generation 10/3 cable we used.
