This is an Order Upgrade Pak for pending RV Buddy, Electric Range Buddy, Welder Buddy orders of any number. It upgrades the order to a Plus AUTO version. If this Upgrade Pak is ordered after after 2 business days (M-F) from the original order you must contact BSA Electronics first to see if your original order qualifies as it may be to far along into the build process.

This Upgrade Pak essential allows you to pay the difference in cost between the base Buddy unit and the Buddy Plus AUTO variant. If you originally chose the meter option, you will have the meter on this AUTO version. This Upgrade Pak is not for existing Buddy's that are already built. This Upgrade Pak is not for existing Buddy's that are already built.

You must have a Buddy on order FIRST or in your cart before adding this Upgrade Pak, purchasing this upgrade doesn't include a Buddy, it is an Upgrade Pak as titled.

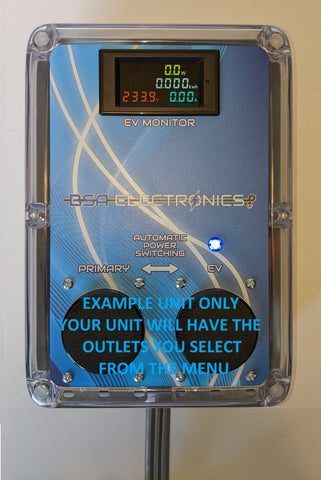

The pic shown is only for illustration purposes to show the label and blue status LED. Your unit will have the power cord, outlets and meter as you order it.

Note: Some Appliances slowly ramp their power draw and/or don't draw significant current (over 3.5 amps) while running, which will cause the RV Buddy Plus AUTO, Electric Range Buddy Plus AUTO, Welder Buddy Plus AUTO to switch the EVSE outlet off or it may switch several times in a short period. For these Dryers we recommend either the PLUS version, that unit offers manual switching between outlets or adding the Delay Controller Upgrade Pak to the  Buddy Plus AUTO unit, The delay kit solves this issue; Delay Controller Upgrade Pak. If you are using a Buddy Plus AUTO unit to share one outlet and charge two EV’s (no Appliance) then you will definitely need the Delay Controller Upgrade Pak.

What is a RV Buddy, Electric Range Buddy, Welder Buddy Plus AUTO?

The Plus AUTO is a fully automatic 2-way switcher based on the original Buddy Plus, It allows you to share your 50amp outlet with your EVSE without having to flip any switches. Basic operation is simple, the 1^st outlet is always live and the EVSE outlet (on the right) is only live when there is enough amperage available to charge your EV. When the appliance or unit plugged into outlet #1 is off or at standby it is drawing little to no amps so the EVSE outlet is switched on allowing your EV to charge. If the Appliance or unit plugged into outlet #1 is turned on at any time and draws approximately 3.5amps or more then the EVSE outlet is switched off, when the Appliance or unit plugged into outlet #1 is done, power is restored to the EVSE outlet and if your EV needs charging it will resume charging. Designed so other members of the house don't have to understand anything technical to use the appliance or unit plugged into outlet #1. Great for apartment dwellers, temp housing or an easy hookup at a friend’s/relative’s house.

Note: For the PLUS and Plus Auto models the meter is wired to read system Voltage and only meter the Current flowing through the EVSE outlet, unlike the original (non switching) RV/Electric Range/Welder Buddys where the meter reads all Current flowing through the unit. In this configuration the Kilowatt Hours (kWh's) will only accumulate for Energy flowing through the EVSE outlet (on the right of the face) this value is stored between power outages and may be reset when you like. This allows you to see only the Energy your Electric vehicle has consumed.

Have a look in my Options and Upgrades collection for several popular Options for your new Buddy, such as a Remote EVSE Outlet and more!, they are sorted by popularity: Options&Upgrades

See my demo video here for an example of how the Plus AUTO switching happens:  https://youtu.be/tWbsAitIe4I

Need some help identifying your wall outlet? We can help! Below is a description of the more common NEMA outlets and their numbers as well as some handy NEMA plug charts. You can also email us a pic of your plugs and outlets you need help identifying and we would be happy to help.

Here are the more common NEMA outlets:

• 5-15 standard 15A 120 volt household outlet, the most common you see everywhere.
• 5-20 standard 20A 120 volt household outlet, required by code in bathroom and behind your refrigerator.
• 6-15 standard 15A 240 volt household outlet, found in homes and motels for running in-wall Air Conditioners, it’s the smaller brother to the NEMA 6-20 outlet. The 5-20 is not as common as a 6-20 outlet with it’s “T” shaped slot as it will accept both 6-20 and 6-15 plugs.
• 6-20 standard 20A 240 volt household outlet, found in homes and motels for running in-wall Air Conditioners, also found occasionally in residential garages.
• 6-50 standard 50A 240 volt 3-prong outlet, found in shops and garages used for large welders.
• 10-30 standard 30A 240 volt 3-prong Dryer outlet found in homes build before 1996
• 14-30 standard 30A 240 volt 4-prong Dryer outlet found in homes build in 1996 and newer
• 14-50 standard 50A 240 volt 4-prong Range (electric stove top) outlet, also called RV-50 at the RV parks. By far the best universal connector to have for an EVSE. This is the one the Tesla guys install in their garages.
• TT-30 (Travel Trailer 30amp) 30A 120 volt 3-prong outlet, the older style found in RV parks, not used in residential homes.
• L6-30 (locking 240 volt 30amp) Twist-Lock 30A 240 volt outlet, my personal favorite locking connector, easy to find in stores, works great for adding adapters to portables EVSE’s equipped with a L6-30 plug.

220/240 volt outlets are commonly install with the ground pin towards the ceiling for safety. 110/120 volt outlets can be found mounted in all directions. Be sure to carefully look at your outlet and the chart, it's easy to mistake one outlet for another if your outlet has it's ground pin facing the floor instead of the ceiling or Vice Versa compared to the chart.

In the full NEMA number you will see a capital R or P. The R stands for Receptacle (outlet) and the P stands for Plug, we commonly truncate this to just the numbers and add the word receptacle (or outlet) at the end. For example 14-50R becomes 14-50 receptacle or 14-50 outlet.

Need some extra length between your Dryer outlet and EasySplit 220™ or between the EasySplit 220™ and your Electric Vehicle Charging Station (EVSE)? I custom build extension cords to the length your need and with the plug and outlet of your choice, see my extensions in the Adapter’s section for several models; Extension Cords

Give you new Buddy unit a techie look with Beautiful Black Socket Head Screws with matching black washers; Black Socket Head Screw and washer Upgrade Pak for all Buddy units

Email me with your custom request
